Flexible Neodymium Magnets

Flexible Neodymium Magnets – a high-performance composite made from a blend of neodymium magnet powder and a polymer matrix. These magnets offer far superior magnetic properties compared to conventional rubber magnets and boast excellent flexibility and machinability. Their diverse applications range from sensors and miniature motors to flat speakers and powerful magnetic attachments, with new uses constantly emerging.

Our Flexible Neodymium Magnets represent the perfect blend of strength and versatility, designed to meet the exacting demands of technological innovation. Whether for complex applications in precision devices or for robust, everyday magnetic solutions, our magnets deliver performance that you can count on.

Send email to us Download as PDF

Product Detail

Product Tags

Features

• Excellent Bendability: These magnets can be easily wound and fitted to automatic machines, providing higher assembly efficiency than molded magnet rings.

• No Need for Complex Molds: Our production process is streamlined, allowing for shorter production cycles and faster delivery times.

• Wide Operating Temperature Range: Suitable for use in extreme conditions, these magnets maintain their properties from -40°C to 120°C.

• Multi-Pole Magnetization: Magnetization can be customized in various configurations to meet the specific needs of different applications.

• Systematically Tested for Reliability: Each product undergoes rigorous reliability testing to ensure consistent and dependable performance.

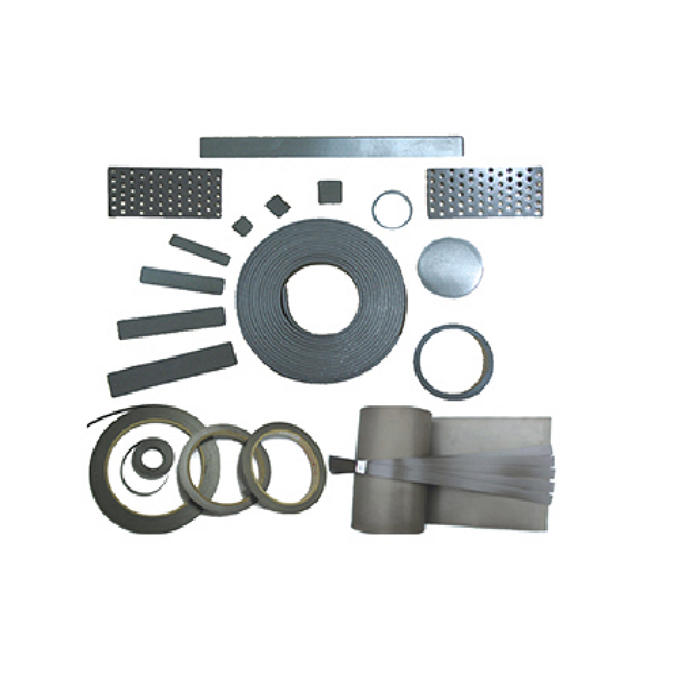

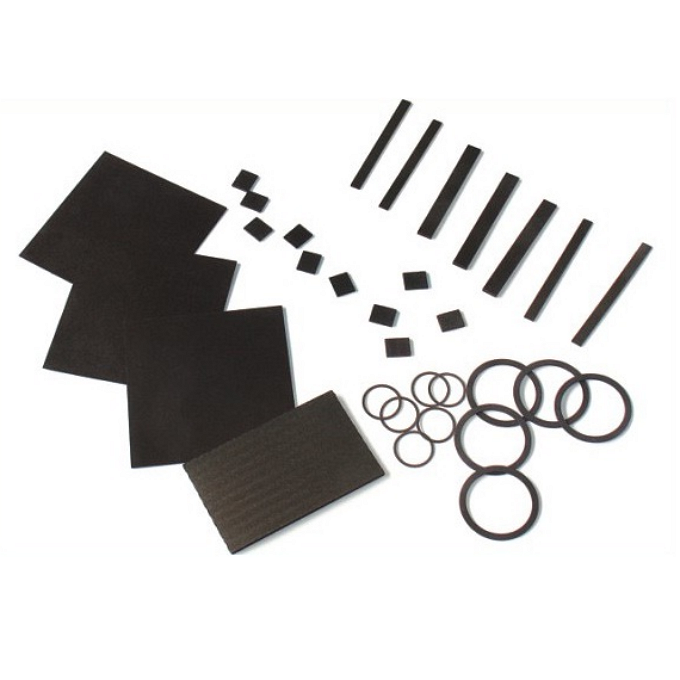

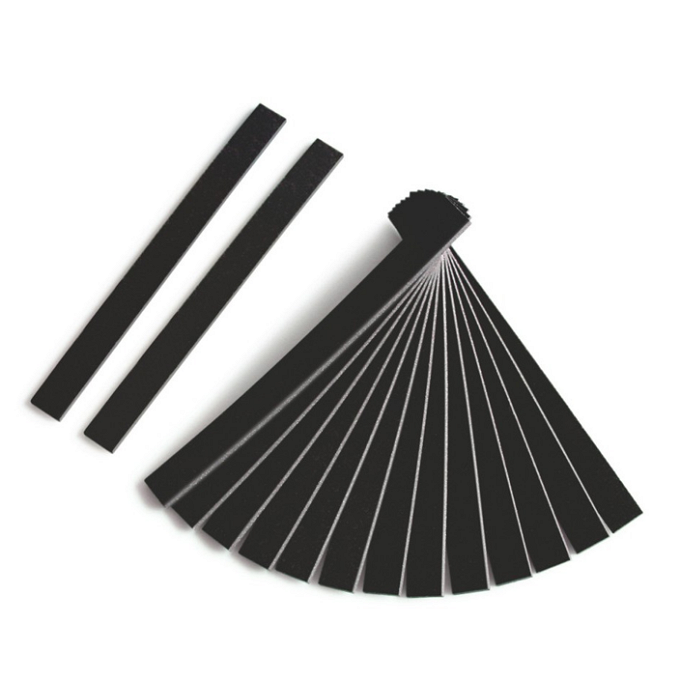

• Versatile Shapes: Available in strips, rolls, rings, or large-area sheets, accommodating a wide range of design requirements.

• Customizable Magnetic Properties and Hardness: We can tailor magnetic strength and flexibility to meet the unique specifications of our customers.

Magnetic Properties

Grade	Br		Hcb		Hcj		(BH)_max		Density	αBr	TW
Grade	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	g/cm³	%/℃	℃
FN2	250～350	2.5～3.5	120～200	1.5～2.5	160～320	2.0～4.0	12～20	1.5～2.5	3.3～3.9	-0.11	≤120
FN3	330～430	3.3～4.3	170～250	2.1～2.3	380～540	4.8～6.8	20～28	2.5～3.5	4.0～4.6	-0.11	≤120
FN4	380～480	3.8～4.8	210～300	2.7～3.7	540～700	6.8～8.8	28～36	3.5～4.5	4.4～5.0	-0.11	≤120
FN5	430～530	4.3～5.3	250～340	3.2～4.2	620～780	7.8～9.8	36～44	4.5～5.5	4.65～5.25	-0.11	≤120
FN6	480～580	4.8～5.8	290～380	3.7～4.7	630～800	8.0～10.0	44～52	5.5～6.5	4.65～5.25	-0.11	≤120
FN7	530～630	5.3～6.3	340～420	4.3～5.3	670～880	8.5～11	52～60	6.5～7.5	4.8～5.4	-0.11	≤120
FN8	570～670	5.7～6.7	350～440	4.5～5.5	670～880	8.5～11	60～68	7.5～8.5	5.1～5.7	-0.11	≤120
FNE2	250～350	2.5～3.5	120～200	1.5～2.5	150～320	2.0～4.0	12～20	1.5～2.5	3.45～4.05	-0.11	≤120
FNE3	350～450	3.5～4.5	170～250	2.1～3.1	280～440	3.5～5.5	20～28	2.5～3.5	4.1～4.7	-0.11	≤120
FNE4	380～480	3.8～4.8	210～300	2.7～3.7	440～600	5.5～7.5	28～36	3.5～4.5	4.4～5.0	-0.11	≤120
FNE5	420～520	4.2～5.2	250～325	3.1～4.1	520～680	6.5～8.5	36～44	4.5～5.5	4.65～5.25	-0.11	≤120
