Introduction
On May 16, 2011, at the Kennedy Space Center in Florida, dawn illuminated the launch pad where the gleaming white Space Shuttle Endeavour stood poised. The countdown commenced seconds ticking away, with thousands of spectators eagerly holding their breath. Suddenly, the engines ignited, unleashing a roaring torrent of orange flames reminiscent of volcanic magma. The ground shook, the heated air shimmered, and Endeavour slowly ascended, piercing through the clouds toward the cosmos, leaving behind a blazing trail.
Space Shuttle Endeavour lifts off for the final time on May 16, 2011
01. Endeavour's Historic Moment
This marked Endeavour's final journey into space—a glorious conclusion to the era of Space Shuttles. Hidden within its cargo bay was a 6.7-ton cosmic ray detection instrument, the Alpha Magnetic Spectrometer (AMS-02), bound for the International Space Station (ISS).

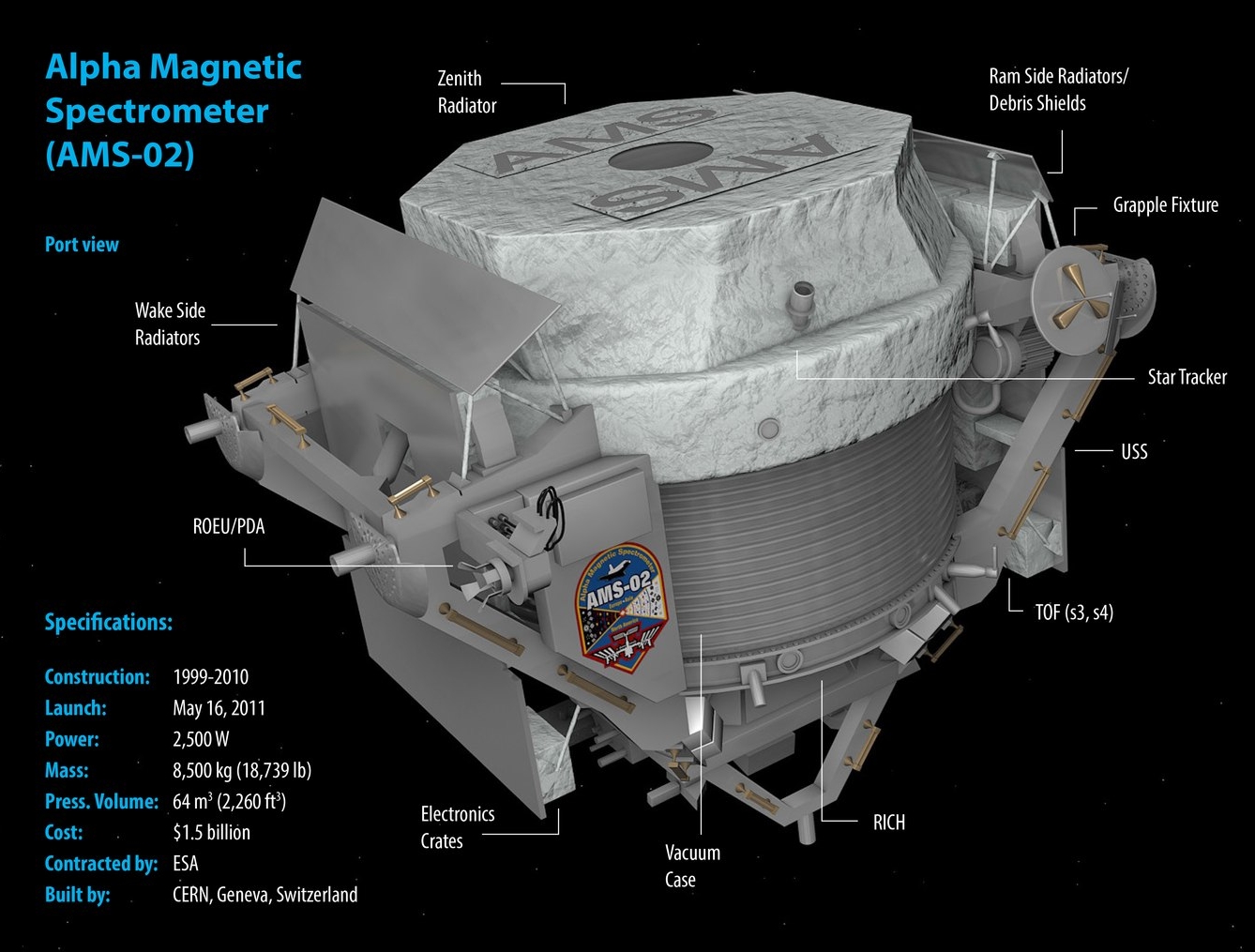

Alpha Magnetic Spectrometer Construction and Specifications
02. Alpha Magnetic Spectrometer: A Pioneer in Cosmic Exploration
The AMS-02, installed on the ISS, is the first large-scale magnetic spectrometer placed in orbit, led by Nobel Laureate Professor Samuel C.C. Ting. Its ambitious mission involves capturing cosmic rays to search for signs of dark matter and antimatter, striving to unravel the ultimate mysteries surrounding the universe's origins.
Capturing high-speed charged particles in space is exceptionally challenging. AMS-02 requires a robust, stable, uniform magnetic field to guide particles into its detectors precisely.
Engineers faced immense challenges: the magnetic field needed exceptional strength and uniformity, the structure had to be compact, magnetic leakage had to be minimized to prevent interference with other instruments, and the entire system had to withstand the intense vibrations and accelerations during shuttle launch, all while remaining within stringent weight constraints.
Ultimately, engineers from the Institute of High Energy Physics and the Institute of Electrical Engineering at the Chinese Academy of Sciences innovatively devised a magnetic circuit called the "Magic Ring." This unique design overcame all challenges, elevating the application and design of permanent magnet systems to unprecedented heights.
03. AMS-02's Permanent Magnet System: The Invisible Hand Touching the Cosmos
What exactly makes AMS-02's permanent magnet system remarkable?
The magnet system of AMS-02 is an engineering marvel composed of 64 high-performance sintered neodymium-iron-boron (NdFeB) magnets, each magnetized in different orientations, weighing a total of 1.86 tons. These magnets are precisely arranged into a cylindrical structure—inner diameter 1114 mm, outer diameter 1296 mm, and height 800 mm—creating a uniform magnetic field of 1340 Gauss at its core.

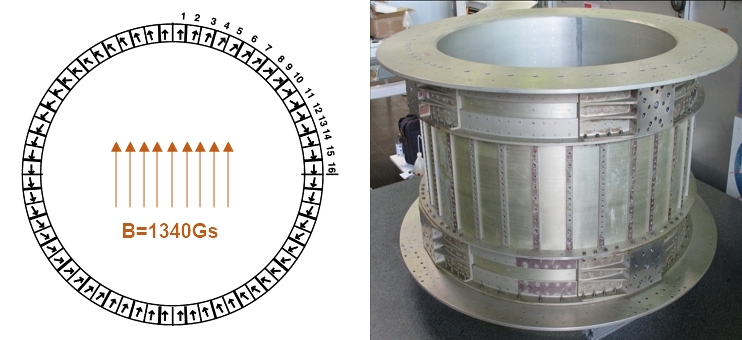

Alpha Magnetic Spectrometer Permanent Magnet System Magnet Array Arrangement and Physical Appearance
When cosmic high-energy charged particles enter the spectrometer, they deflect under this magnetic field. By analyzing their trajectories, scientists can determine particle characteristics and accurately measure the energy spectra of antiprotons, positrons, or photons. These measurements help determine experimentally whether antimatter exists in space.

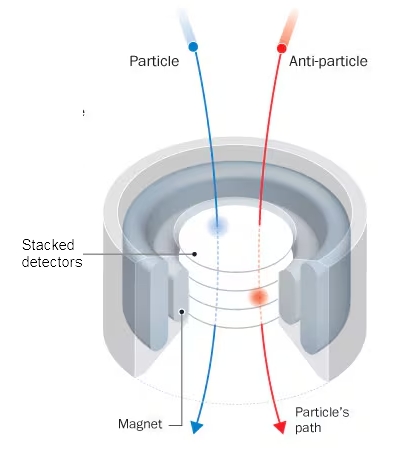

Schematic diagram of the working principle of alpha magnetic spectrometer
04. From AMS-02 to the Broader World of Magnetic Circuits
The permanent magnet system of AMS-02 represents a pinnacle of magnetic circuit engineering, highlighting the extensive applications of permanent magnet materials in technology. From high-speed factory motors to smart gadgets in our pockets, permanent magnets are ubiquitous. Engineers utilize creative arrangements of seemingly ordinary magnets to achieve extraordinary functions.
Let's explore several clever, standard magnetic circuit designs driving technological innovation.
05. Five Innovative Magnetic Circuit Designs
1. Conventional Magnetic Circuits: Simplicity and Reliability
The simplest form employs single magnets or combinations with iron components to form open or closed loops. Widely used in magnetic clasps and yokes, these designs offer low cost and ease of manufacturing, forming the basis for more complex designs.

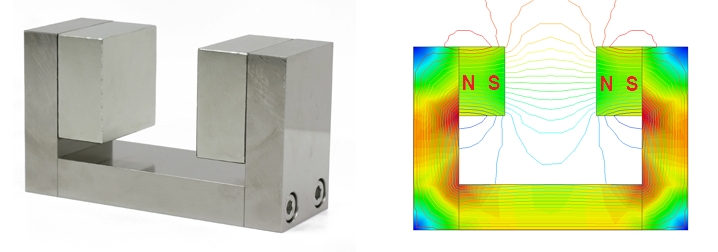

Magnetic field distribution of a C-shaped yoke
2. Switchable Magnetic Circuits: Flexible Magic
Magnets positioned mechanically or magnetized/demagnetized electrically enable magnetic fields to switch on and off. They are ideal for devices like switched magnets bases or chucks, allowing frequent state transitions between attraction and release.

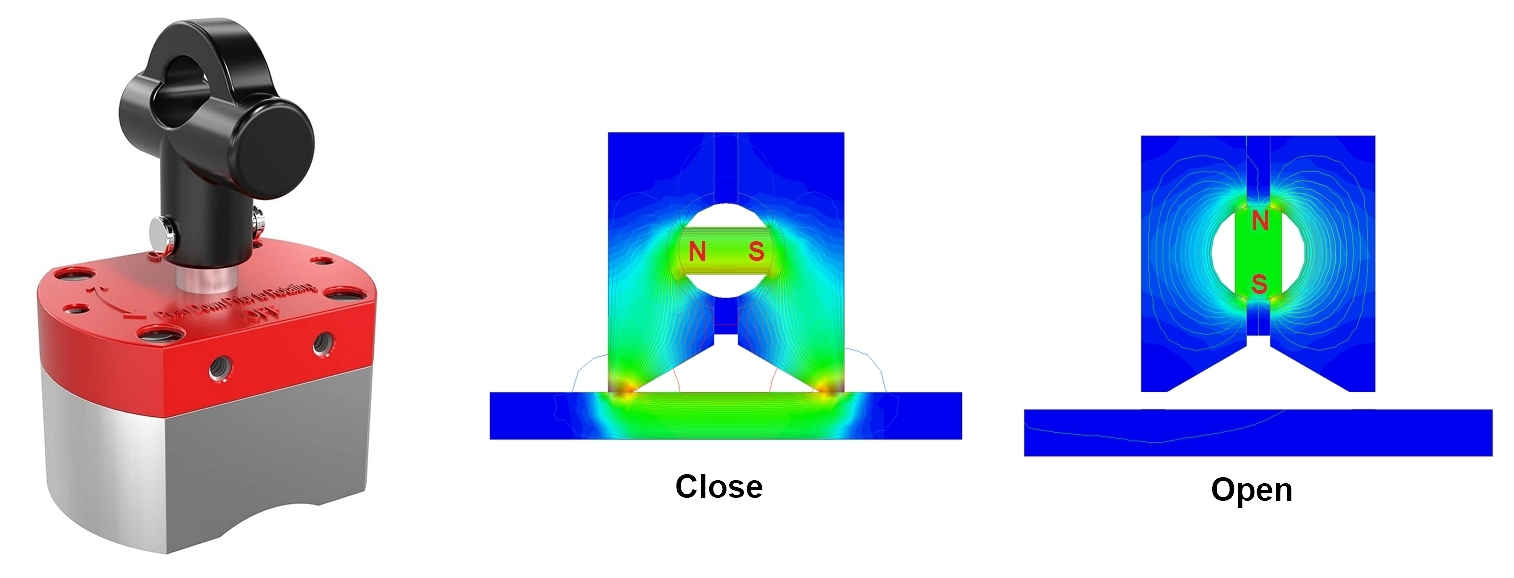

Magnetic Circuit Structure and Magnetic Field Distribution of Switched Magnet
3. Multipole Magnetic Circuits: Magnifying Magnetic Power
Alternating north/south poles to generate powerful combined magnetic fields, enhancing attraction and precise positioning. It is commonly used in tablets and smartphones, including Apple's MagSafe technology, improving device stability and user experience.

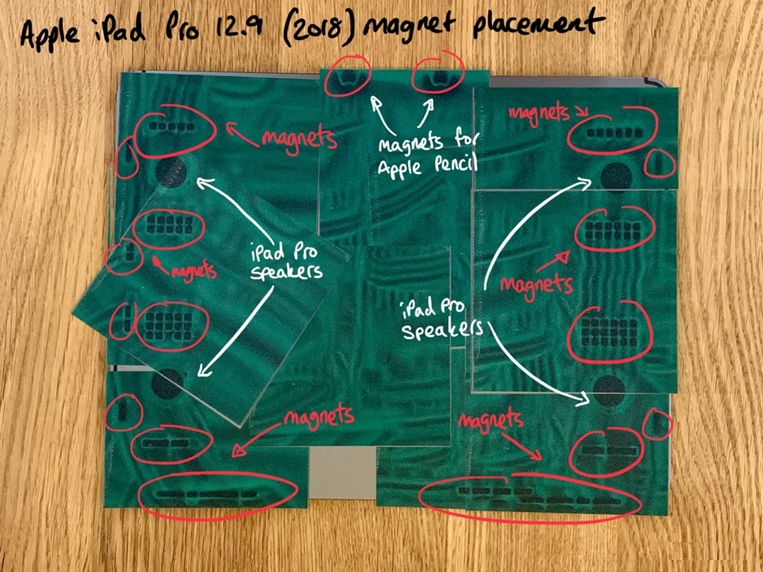

Magnetoscope showing the distribution of magnets inside the IPAD
4. Magnetic Flux Concentration Circuits: Focused Magnetic Energy
High-permeability materials surrounding magnets guide flux lines into targeted areas, significantly boosting local field strength. These circuits are critical in magnetic separators and detectors and enhance efficiency in industrial and medical applications.

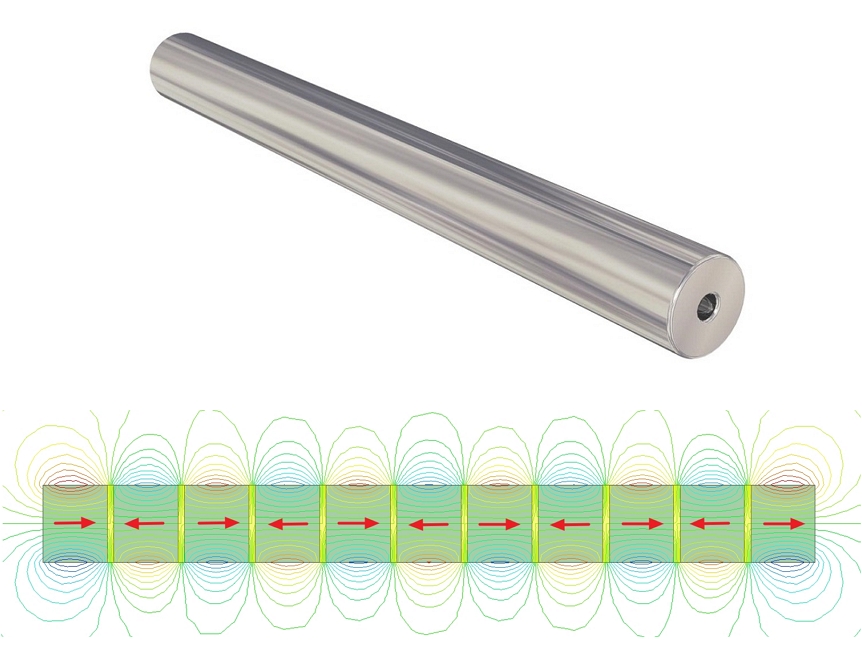

Magnet array and magnetic field distribution of magnetic bar
5. Halbach Arrays: Supercharging Magnetic Fields
Magnets are arranged in specific orientations to create highly controlled magnetic fields, centralizing flux inward and minimizing external interference. AMS-02's magnet system employs this sophisticated arrangement. Halbach arrays are also prominently featured in cutting-edge semiconductor lithography equipment.

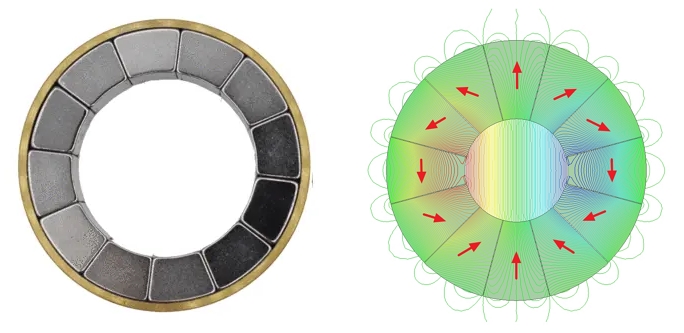

Magnet arrays and magnetic field distribution in Halbach magnetic rings
06. From Space to Our Pockets: The Endless Possibilities of Magnets
Looking back to May 16, 2011, the moment Endeavour carried AMS-02 into space remains vividly inspiring. AMS-02 has operated flawlessly on the ISS for 14 years, a testament to human ingenuity and the extraordinary capabilities of magnet technology. Through ingenious magnetic circuit design, even the simplest magnets can profoundly aid humanity's quest to understand the universe.
