Introduction
A modern flagship smartphone contains 8 to 12 discrete permanent magnet assemblies, most of them sintered NdFeB grades smaller than a fingernail. For design engineers and procurement teams sourcing into consumer electronics, this density creates a hard constraint: every gram, every micron of thickness, and every degree of thermal stability matters. NdFeB magnets in smartphones are not commodity parts — they are precision-engineered components where grade selection directly determines acoustic output, optical stability, and haptic fidelity.
This guide breaks down where these magnets sit inside the device, what performance specs actually matter, and where sourcing decisions tend to go wrong.
Where Are the Magnets Hiding in a Modern Smartphone?
Most teams new to consumer electronics underestimate the magnet count. A typical 2025-generation flagship integrates permanent magnets across at least five subsystems:
|
Subsystem |
Typical Magnet Type |
Primary Function |
|
Micro-speaker / receiver |
Sintered NdFeB (N48–N52H) |
Audio transduction |
|
Vibration / haptic motor |
Sintered NdFeB (high-coercivity grade) |
Linear haptic feedback |
|
OIS / AF camera module |
Micro NdFeB blocks |
Lens stabilization and focus |
|
Wireless charging alignment ring |
NdFeB arc segments |
Coil-to-coil registration (e.g., MagSafe) |
|
Hall-sensor wake (case/cover) |
Small NdFeB chip |
Lid-open screen wake |
Each application has different priorities — energy product, coercivity, dimensional tolerance, or coating performance — and a magnet that works in one will often fail in another.
Micro-Speaker Magnets: Power Density Drives Audio Quality
The receiver and main speaker each contain a sintered NdFeB magnet roughly the size of a fingernail, paired with a voice coil. Alternating current through the coil generates a magnetic field that interacts with the permanent magnet, driving the diaphragm to displace air and produce sound.
For audio engineers, the trade-off is straightforward: higher remanence (Br) delivers louder output and better low-frequency response from the same enclosure volume. This is why most premium handsets specify N50 or N52 grades for the main speaker, often with H, SH, or UH temperature ratings to handle prolonged playback heat.
Key specs to confirm with your supplier:
• Remanence (Br): 1.40–1.48 T for N50–N52 grades
• Intrinsic coercivity (Hcj): ≥12 kOe for sustained 80°C operation
• Dimensional tolerance: typically ±0.02 mm for speaker assemblies
• Surface coating: NiCuNi is standard; parylene-over-nickel for high-humidity markets

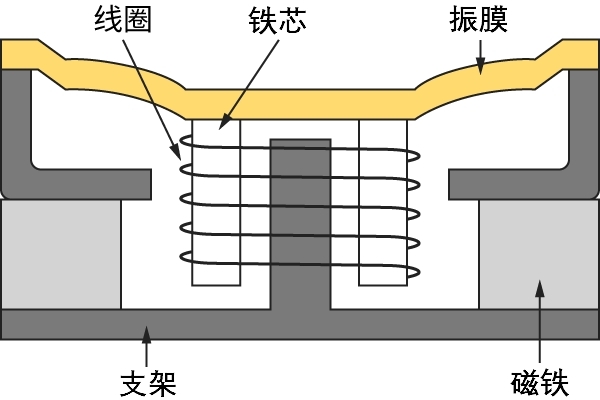

Schematic diagram illustrating the principle of a mobile phone speaker
How Do NdFeB Magnets Enable Optical Image Stabilization?
Optical image stabilization (OIS) is now standard on midrange and flagship cameras. The mechanism is a voice coil motor (VCM) built from micro NdFeB blocks and copper coils arranged around the lens barrel.
The gyroscope detects angular movement, the system calculates a counter-displacement, and current through the coils generates Lorentz forces against the fixed magnets. The lens shifts on the order of tens of microns, in milliseconds, to cancel hand shake.
For the magnets themselves, three properties dominate:
• Magnetic field uniformity across the air gap — critical for linear actuator response
• Compact geometry, often <1.5 mm thick with tight parallelism
• Low magnetic flux variation between units — typically ±2% or tighter, because OIS calibration assumes consistency

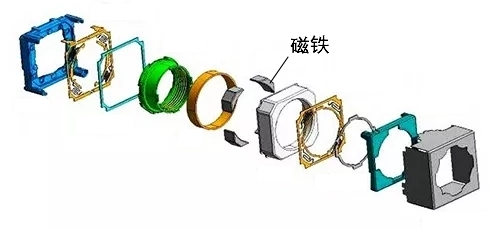

Schematic diagram of a mobile phone camera
Haptic Motors: Why Linear Resonant Actuators Replaced Eccentric Rotors
Early phones used eccentric rotating mass (ERM) motors — essentially a small unbalanced flywheel. The result was a slow, mushy buzz with no directional control.
Modern devices use linear resonant actuators (LRAs), most famously Apple's Taptic Engine. An LRA drives a magnetic mass along a single axis using an AC-driven coil, producing crisp start-stop responses with rise times under 10 ms.
The magnet inside is doing high-cycle work, which changes the sourcing priorities:
• High intrinsic coercivity (Hcj ≥ 17 kOe) to resist demagnetization from coil flux
• Mechanical robustness — these magnets see millions of impact-loaded cycles
• Tight mass tolerance — uneven mass shifts the resonant frequency off the driver's tuned range
For procurement, this is where cheaper N-grade material fails fastest. Demagnetization at the haptic motor manifests as gradual loss of "click feel" over the device lifecycle — a failure mode that's hard to catch in incoming QC but generates field returns.

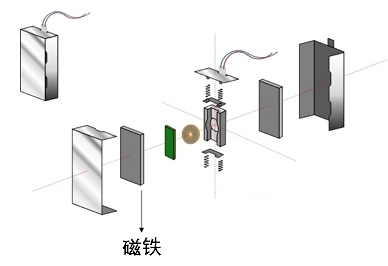

Schematic diagram of a vibration motor
MagSafe and Wireless Charging: The Alignment Magnet Ring
Inductive charging tolerates poor coil alignment poorly — even a few millimeters of offset can cut efficiency by 20–30%. Magnetic alignment systems like Apple's MagSafe solve this with a ring of NdFeB arc segments embedded around the receiver coil, which snap to a mirrored array in the charger.
The ring typically uses axially or diametrically magnetized arc segments, sometimes in a Halbach-style arrangement to concentrate flux on the mating face while shielding the device interior. Key sourcing considerations:
• Magnet orientation accuracy directly affects snap-on alignment
• Eddy-current heating during charging requires careful magnet geometry to limit losses
• Coating durability matters — these magnets sit close to the device exterior and see thermal cycling

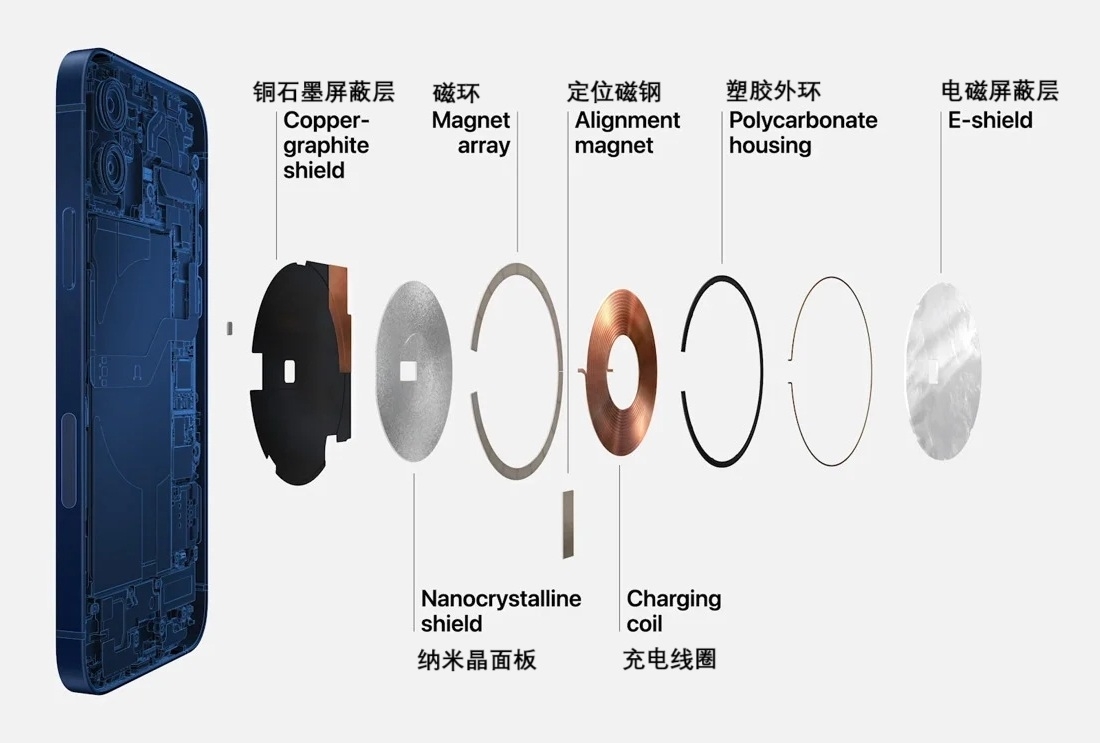

Schematic diagram of the MagSafe structure
Case and Cover Wake: The Hall-Sensor Pairing
Smart covers and folio cases use a small NdFeB chip magnet paired with a Hall-effect sensor inside the device. Closing the cover brings the magnet near the sensor, which switches the display off; opening reverses the signal.
Sourcing here is the most forgiving application — small N35–N42 grades are usually sufficient — but polarity orientation and field strength at the sensor location must match the Hall IC's switching threshold. Mismatched magnets cause intermittent wake behavior that's easy to misdiagnose as firmware.
Specification Pitfalls When Sourcing Smartphone-Grade NdFeB
Most magnet sourcing problems in consumer electronics trace to a handful of recurring errors:
• Specifying grade without temperature suffix. "N52" without H/SH/UH is meaningless for devices that hit 60°C+ in a pocket.
• Ignoring coating in tropical markets. Standard NiCuNi corrodes in 85°C / 85% RH testing; epoxy topcoats or parylene are often required.
• Over-relying on datasheet Br values. Production lots vary; require statistical process control data, not just nominal specs.
• Missing magnetic orientation in drawings. Arc segments and OIS blocks fail silently if magnetized on the wrong axis.
For comparison with alternative chemistries, SmCo magnets offer better thermal stability (operating to 350°C vs. NdFeB's typical 150–200°C for SH grades) but lower energy product and significantly higher cost. SmCo is rarely used in smartphones for that reason, though it appears in some industrial sensors with similar form factors.
FAQ
Q: What grade of NdFeB magnet is used in smartphone speakers?
A: Most flagship smartphone speakers use N50 or N52 sintered NdFeB with an H or SH temperature suffix, providing remanence of approximately 1.40–1.48 T. The exact grade depends on enclosure volume and target sound pressure level. Always confirm the operating temperature rating with your acoustic engineering team before finalizing the grade.
Q: Why use NdFeB instead of SmCo magnets in smartphones?
A: NdFeB offers a higher maximum energy product (up to 52 MGOe vs. 32 MGOe for SmCo), which means more magnetic output per unit volume — critical in space-constrained devices. SmCo is more thermally stable and corrosion-resistant but costs significantly more and delivers less force from the same volume. For smartphone operating temperatures, NdFeB is almost always the better choice.
Q: How small can NdFeB magnets be manufactured for mobile devices?
A: Sintered NdFeB magnets for smartphone applications are routinely produced below 1 mm in thickness and a few millimeters across, with dimensional tolerances of ±0.02 mm. Smaller geometries are possible with bonded NdFeB, though at the cost of lower energy product. Micro-machining and EDM are common finishing methods for tight tolerances.
Q: What causes haptic motor degradation in smartphones over time?
A: The most common cause is partial demagnetization of the LRA magnet due to repeated high-current coil pulses, especially in magnets with insufficient intrinsic coercivity. Mechanical fatigue of the suspension and adhesive bonds also contributes. Specifying SH or UH grade NdFeB with Hcj ≥ 17 kOe significantly extends usable life.
Q: Do magnets in smartphones interfere with credit cards or pacemakers?
A: Smartphone magnets are small and well-shielded, but MagSafe-style magnet rings can demagnetize magnetic stripe cards with prolonged direct contact. Medical device manufacturers including Apple and Medtronic recommend keeping smartphones at least 6 inches (15 cm) from implanted pacemakers and defibrillators. Refer to the device manufacturer's safety documentation for current guidance.
