Introduction
If your motor runs hot, your speaker sounds thin, or your sensor assembly needs twice the magnet mass to hit spec, the root cause is often the same: a poorly designed magnetic circuit. Engineers routinely over-specify NdFeB or SmCo grades to compensate for flux paths that leak energy into the surrounding air. The fix is rarely a stronger magnet — it's a better circuit.
This guide explains what a magnetic circuit is, how it behaves like (and differs from) an electrical circuit, and where design choices make the largest difference in real components.
What Is a Magnetic Circuit, Exactly?
A magnetic circuit is the closed path that magnetic flux follows as it travels from the north pole of a magnet, through surrounding materials and air gaps, and back to the south pole. It is the magnetic analog of an electrical circuit — except instead of current flowing through conductors, magnetic flux flows through magnetic materials.
The analogy maps cleanly onto familiar variables:
|
Electrical circuit |
Magnetic circuit |
|
Voltage (EMF) |
Magnetomotive force (MMF), measured in ampere-turns |
|
Current (I) |
Magnetic flux (Φ), measured in webers |
|
Resistance (R) |
Reluctance (ℛ), measured in ampere-turns/weber |
|
Ohm's Law: V = IR |
Hopkinson's Law: MMF = Φ × ℛ |

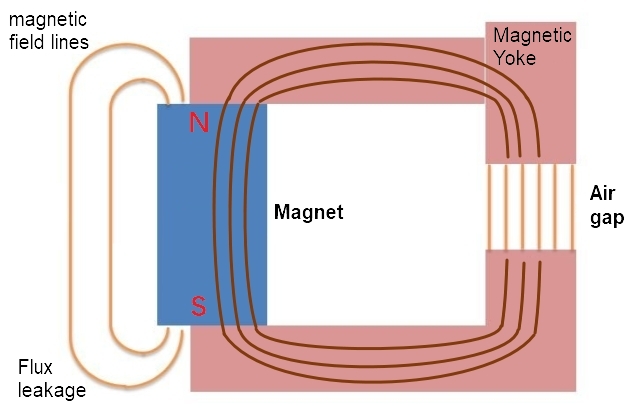

Schematic diagram showing the path of magnetic flux lines in a magnetic circuit comprising a magnet and a magnetic yoke
Flux does not travel randomly. It follows the path of least reluctance, concentrating in high-permeability materials like iron, steel, or ferrite, and spreading out (with much higher reluctance) through air.
This behavior creates a fundamental design lever: by shaping the materials around a magnet, you control where flux goes — and therefore where useful work happens.

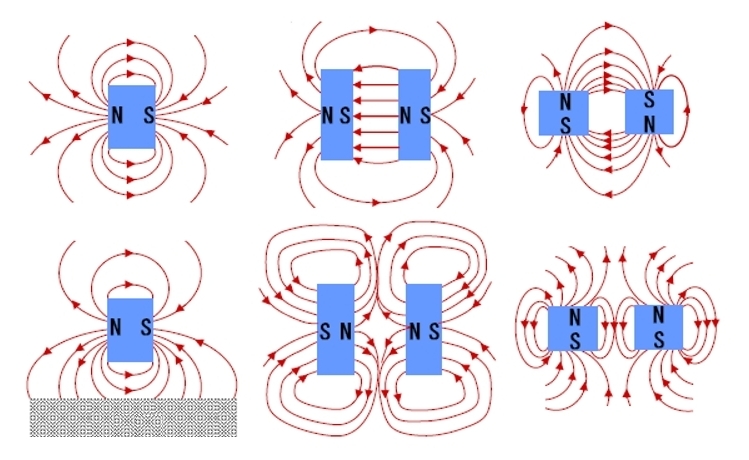

Common magnet arrangements and magnetic field line distributions
Open Circuit vs. Closed Circuit: Why It Matters for Magnet Selection
Every permanent magnet operates somewhere on its demagnetization curve (B-H curve), and the magnet's operating point depends almost entirely on the circuit it sits in.
• Open circuit: A standalone magnet with no high-permeability return path. Flux must complete its loop through air, which has high reluctance. The magnet operates at a low flux density and is more vulnerable to demagnetization from external fields or heat.
• Closed circuit: The magnet is integrated into a flux path with steel or iron pole pieces, yokes, or backing plates. Reluctance drops sharply, the magnet operates closer to its maximum energy product (BHmax), and useful flux at the air gap rises.
This is why a loose NdFeB block on a benchtop feels weaker than the same block clamped into a motor stator. Same magnet, different circuit, very different output.
For procurement teams, the implication is direct: magnet grade alone does not predict in-application performance. The circuit determines whether an N42 magnet outperforms an N52 — and it often does, when the circuit is tighter.
How Does Magnetic Circuit Design Improve Device Performance?
Magnetic circuit design directly determines efficiency in any product that converts electromagnetic energy into motion, sound, or sensing. Three application areas show the leverage most clearly.
Motors and Actuators
In a brushless DC motor, the magnetic circuit runs from the rotor magnets, across the air gap, through the laminated stator teeth, around the back-iron yoke, and back. Designers optimize:
• Air gap length — typically 0.3 to 1.0 mm in small motors. Shorter gaps reduce reluctance but tighten manufacturing tolerances.
• Lamination steel grade — silicon steels like M19 or M27 (per ASTM A677) minimize eddy-current and hysteresis losses.
• Pole-piece geometry — shaped to concentrate flux uniformly across the air gap.
Tightening this circuit can deliver the same torque from a smaller magnet — a meaningful cost line when NdFeB pricing fluctuates with rare-earth supply.
Speakers and Voice-Coil Actuators
A speaker's magnetic circuit forces flux radially across an air gap where the voice coil sits. The classic design uses a center pole, top plate, and bottom plate (or T-yoke and washer) of low-carbon steel to channel flux from the NdFeB or ferrite magnet.
Stronger flux density in the gap means higher BL product — directly translating to louder, more efficient, lower-distortion output for the same input power.
Sensors and Magnetic Couplings
Hall-effect sensors, reed switches, and magnetic encoders all depend on a tightly controlled magnetic circuit at the sensor face. Even small leakage paths shift switching thresholds and degrade linearity. Adding a steel flux concentrator behind the sensor is often a one-cent change that improves accuracy by 10–20%.
What Causes Flux Leakage — and How Do You Reduce It?
Flux leakage is magnetic flux that escapes the intended path and returns through air without doing useful work. It wastes magnet energy and weakens the field where you actually need it. Common causes:
• Excessive air gap between magnet and pole piece
• Saturated steel in the return path, forcing flux to spill into surrounding air
• Sharp geometry transitions that create localized high-reluctance regions
• Nearby ferromagnetic objects unintentionally pulling flux off-path
• Improper magnet orientation relative to the intended flux direction
Mitigation strategies for engineers:
• Use a magnetic yoke (back-iron, steel cup, or shield) to provide a low-reluctance return path
• Match steel cross-section to expected flux — undersized steel saturates around 1.5–2.0 T for typical electrical steels
• Minimize and equalize air gaps wherever possible
• Validate with FEA before committing to tooling
Which Tools Do Engineers Use for Magnetic Circuit Analysis?
Three approaches dominate, often used together:
• Lumped-parameter circuit analysis. Treats the magnetic path as a network of MMF sources and reluctances. Fast, useful for early concept work and sensitivity studies.
• Finite element analysis (FEA). Tools like Ansys Maxwell, COMSOL Multiphysics, and JMAG solve Maxwell's equations across a meshed geometry. Standard for production designs, especially where saturation, eddy currents, or 3D effects matter.
• Bench measurement. Gaussmeters, Helmholtz coils, and search coils validate the model against the physical part. Required for any high-volume design — simulation predicts, measurement confirms.
For most B2B applications, a lumped-parameter sketch followed by 2D or 3D FEA catches >90% of design errors before prototype tooling.
Specification Pitfalls When Designing Around a Magnet
Recurring failures in magnetic circuit design:
• Quoting magnet grade without operating point. N52 means little without knowing where on the B-H curve the magnet sits in your assembly.
• Ignoring temperature derating. Steel permeability is relatively stable, but NdFeB loses ~0.12% Br per °C. The circuit at 25°C is not the circuit at 80°C.
• Designing the magnet first, the circuit second. The opposite is almost always cheaper — define the air gap, return path, and target flux density first, then size the magnet.
• Forgetting assembly tolerances. A 0.1 mm air gap variation can shift flux density by 5–10% in tight circuits.
FAQ
Q: What is the difference between a magnetic circuit and an electrical circuit?
A: A magnetic circuit carries magnetic flux through high-permeability materials, while an electrical circuit carries electric current through conductors. The two are mathematically analogous: MMF corresponds to voltage, flux corresponds to current, and reluctance corresponds to resistance. The key practical difference is that magnetic flux always returns to its source and can leak through air, while electrical current requires a physical conductor.
Q: Why does a magnet feel stronger when attached to steel?
A: Attaching a magnet to steel completes a closed magnetic circuit with low reluctance. The magnet's operating point shifts toward its maximum energy product, and flux density at the working surface increases significantly. The same magnet in open-circuit conditions delivers a fraction of its potential pull force.
Q: How much performance gain comes from better magnetic circuit design?
A: In typical motor, speaker, and actuator designs, optimizing the magnetic circuit can deliver 15–40% more useful flux from the same magnet, or allow a lower-grade magnet to meet the original spec. Gains depend on the baseline design and the size of the air gap relative to the magnet thickness. FEA simulation is the standard way to quantify these gains before prototyping.
Q: What materials are best for the magnetic return path?
A: Low-carbon steel (e.g., 1006, 1008, or 1010) is the most common choice — it is inexpensive, easy to machine, and has high saturation flux density around 2.0 T. For dynamic applications with AC fields, use silicon steel laminations to reduce eddy-current losses. Soft magnetic composites (SMCs) are an option for 3D flux paths in motors.
Q: Can you design a magnetic circuit without FEA software?
A: Yes, for simple geometries. Lumped-parameter (reluctance network) analysis using Hopkinson's Law gives quick first-order estimates and works well for textbook geometries like C-cores or simple actuators. For anything involving saturation, complex 3D shapes, or eddy currents, FEA is the practical standard. Most engineers start with hand calculations and validate with FEA before tooling.
