If you specify, source, or manufacture with NdFeB permanent magnets, you already know they punch far above their weight. What's less understood — even among experienced engineers — is exactly what goes into them, why trace additives matter enormously, and why the global supply of these materials just got significantly more complicated.
The Core Composition of NdFeB Magnets: More Than Three Elements
The name "neodymium-iron-boron" accurately reflects the three primary constituents: neodymium (Nd), iron (Fe), and boron (B). But reducing NdFeB magnets to a simple three-element mix understates the precision involved.
The dominant magnetic phase is Nd₂Fe₁₄B, a tetragonal intermetallic compound. The stoichiometry of this phase is not flexible — even small deviations in elemental ratio degrade remanence (Br), coercivity (Hcj), or both. Getting the ratio right is what separates a high-performance grade from scrap.
|

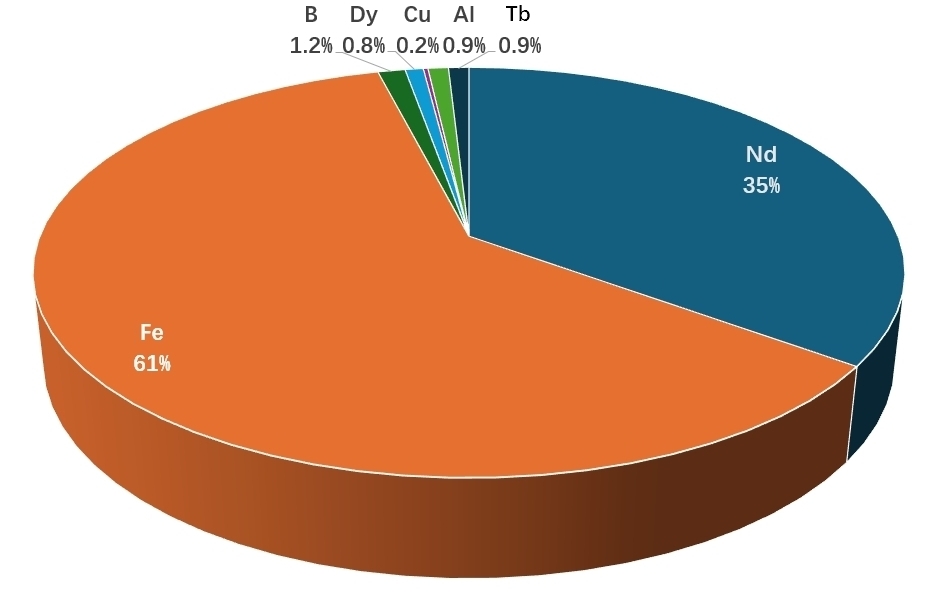

Element |
Role in NdFeB |
Typical Content (wt%) |
|
Neodymium (Nd) |
Primary rare earth; drives magnetic anisotropy |
28–32% |
|
Iron (Fe) |
Provides high saturation magnetization |
64–68% |
|
Boron (B) |
Stabilizes the Nd₂Fe₁₄B crystal phase |
~1% |
Neodymium is a light rare earth element (LREE) classified as a critical material by both the U.S. Department of Energy and the European Commission. It cannot be substituted without significant magnetic performance loss.
Why NdFeB Magnets Require Functional Additives
Pure Nd₂Fe₁₄B performs well at room temperature. Under thermal stress or in corrosive environments — common in EV motors, wind turbine generators, and industrial drives — it degrades. That's where carefully selected additives become essential.
Heavy rare earth elements (HREEs) are the most impactful additives:
• Dysprosium (Dy): Substitutes for Nd at grain boundaries. Increases intrinsic coercivity (Hcj) significantly, enabling operation at elevated temperatures (up to 200 °C in high-grade formulations). Typical addition: 1–5 wt%.
• Terbium (Tb): A more potent coercivity enhancer than Dy per unit weight. Used where Dy availability or cost is a constraint. Typical addition: 0.5–2 wt%.
Structural and corrosion-resistance additives include:
• Aluminum (Al): Improves grain boundary microstructure and reduces oxidation susceptibility.
• Copper (Cu): Enhances corrosion resistance and stabilizes the intergranular phase during sintering.
• Cobalt (Co): Increases Curie temperature and improves thermal stability.
• Niobium (Nb) / Zirconium (Zr): Refine grain size in the sintered microstructure, improving mechanical and magnetic consistency.
These additives are present in small amounts — typically under 3 wt% combined — but their absence, or incorrect dosing, directly impacts the magnet's operating temperature rating and long-term reliability.
How Export Controls on Heavy Rare Earths Affect Your Supply Chain
In April, 2025, China — which produces approximately 90% of the world's refined rare earth materials — implemented export control measures on seven categories of medium and heavy rare earths. The controlled elements include samarium (Sm), gadolinium (Gd), terbium (Tb), dysprosium (Dy), lutetium (Lu), scandium (Sc), and yttrium (Y).
This directly affects Tb and Dy — the two additives most critical to high-coercivity NdFeB grades used in EV traction motors, wind turbine generators, and defense-adjacent systems.
Practical implications for procurement and engineering teams:
• Spot price volatility: Dy and Tb prices have historically spiked sharply during periods of Chinese export restriction. Engineers specifying high-coercivity grades (e.g., N42SH, N45UH) should model cost scenarios accordingly.
• Inventory exposure: Companies operating on lean rare earth inventories face production risk within weeks if shipment approvals are delayed.
• Grade substitution pressure: Some manufacturers are evaluating lower-HREE formulations combined with grain boundary diffusion (GBD) processes to reduce Dy/Tb content without sacrificing coercivity.
• Supply diversification: Australia (Lynas), Canada, and EU-funded rare earth projects are scaling — but meaningful production capacity remains 3–5 years out for most HREE streams.
The bottom line: if your product relies on Grade SH, UH, or EH NdFeB magnets, your engineering and supply chain teams need to be in the same conversation now.
Where NdFeB Magnets Are Used — And Why Composition Matters There
The performance requirements differ sharply across applications. Composition is not one-size-fits-all.
|
Application |
Key Requirement |
Relevant Additive |
|
EV traction motors |
High coercivity at 150–180 °C |
Dy, Tb |
|
Wind turbine generators |
Long-term stability, corrosion resistance |
Cu, Al, Co |
|
Industrial servo drives |
High remanence, dimensional consistency |
Nb, Zr |
|
Consumer electronics |
Cost-optimized, moderate temperature range |
Minimal HREEs |
|
Aerospace / defense |
Extreme reliability, wide temperature range |
Tb (preferred over Dy) |
Understanding the composition behind a magnet grade helps engineers anticipate failure modes — and helps procurement teams ask better questions when qualifying alternative suppliers.
FAQ
Q: What are the main raw materials in an NdFeB magnet?
A: The primary constituents are neodymium (Nd), iron (Fe), and boron (B), forming the Nd₂Fe₁₄B intermetallic phase. In practice, manufacturers also add dysprosium, terbium, aluminum, copper, and cobalt in small quantities to optimize coercivity, thermal stability, and corrosion resistance for specific operating conditions.
Q: Why is dysprosium added to NdFeB magnets?
A: Dysprosium substitutes for neodymium at grain boundaries, substantially increasing intrinsic coercivity (Hcj). This allows NdFeB magnets to resist demagnetization at elevated temperatures — critical in EV motors and industrial drives operating above 100 °C.
Q: How do China's 2025 rare earth export controls affect NdFeB magnet supply?
A: China's April 2025 export controls cover terbium and dysprosium — the two heavy rare earth elements most critical to high-coercivity NdFeB grades. This creates supply risk and cost volatility for manufacturers of EV motors, wind turbines, and other systems requiring SH, UH, or EH magnet grades.
Q: Can you make a high-performance NdFeB magnet without heavy rare earths?
A: Standard NdFeB formulations without Dy or Tb have lower coercivity and are limited to lower operating temperatures (typically below 100 °C). Grain boundary diffusion (GBD) processes can reduce HREE content while partially maintaining coercivity, but full substitution without performance trade-offs is not yet commercially proven at scale.
Q: What is the difference between NdFeB and SmCo permanent magnets in terms of raw materials?
A: NdFeB magnets use neodymium (a light rare earth) as the primary rare earth element, with iron and boron as the base matrix. SmCo magnets use samarium (also a rare earth now under Chinese export control) combined with cobalt. SmCo offers superior high-temperature stability and corrosion resistance but at significantly higher cost and with its own supply chain exposure.
Work With Engineers Who Understand the Full Material Stack
Selecting the right NdFeB grade — and qualifying a reliable source — requires more than a datasheet comparison. If you're reviewing specifications for a new motor design, reassessing supply chain risk, or qualifying an alternative magnet supplier, talk to a materials engineer who can map composition to performance requirements in your specific application.
