Introduction
If you have ever specified a NdFeB magnet or SmCo magnet for a holding fixture, sensor assembly, or magnetic coupling, you have likely noticed something counterintuitive. The corners and edges of the magnet grab ferrous parts faster and harder than the geometric center. Engineers new to permanent magnets often assume this is a defect or a magnetization error. It is neither.
This uneven magnet magnetic force distribution is a fundamental property of every regularly shaped permanent magnet — and understanding it directly affects how you measure, specify, and deploy magnets in production. Below, we break down the physics, the measurement implications, and the design decisions that follow.
Where Is a Permanent Magnet Strongest?
For a regularly shaped permanent magnet — block, disc, or ring — surface flux density is highest at the edges and corners, and weakest at the geometric center of the pole face.
This is not a manufacturing inconsistency. It is the predictable result of internal magnetic field interactions inside the material. The effect appears in every grade of NdFeB, SmCo, ferrite, and Alnico magnet, regardless of supplier.
For most procurement and design teams, the practical takeaway is simple:
• Edge measurements can exceed center measurements by 15–40% on typical block geometries [Verify: exact range depends on L/D ratio and grade]
• The center reading is the industry-standard reference point for datasheet specifications
• Magnet geometry — not just material grade — determines how pronounced this gradient becomes
What Causes Uneven Magnetic Force Distribution?

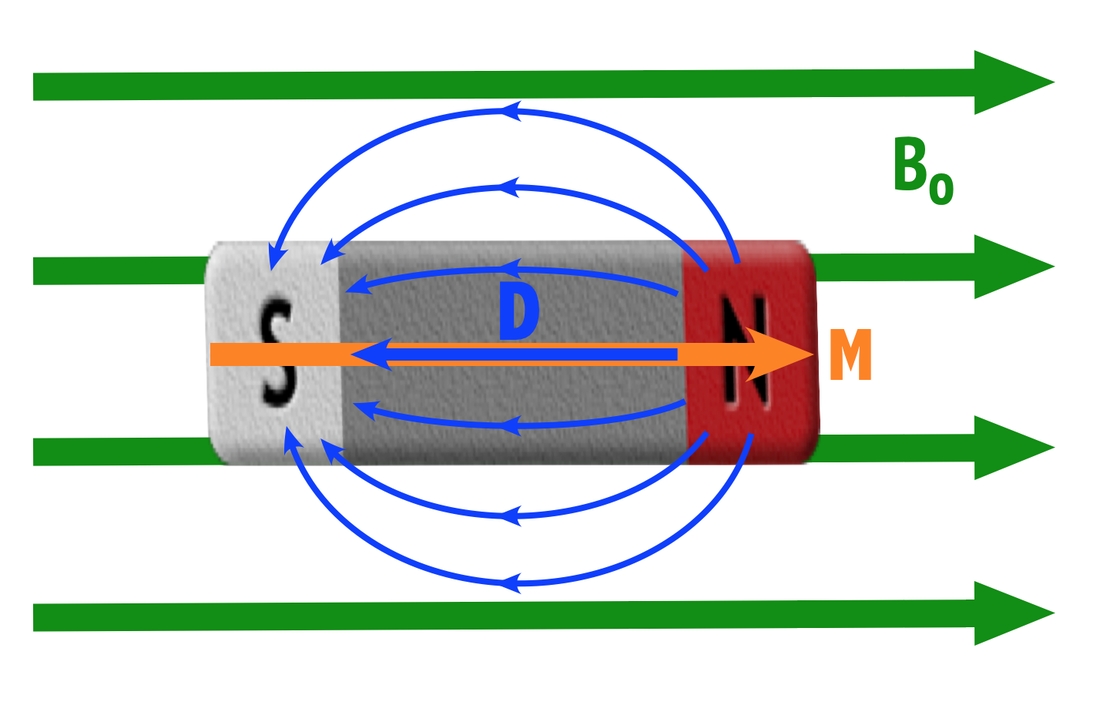

The mechanism behind this behavior is the demagnetizing field, sometimes written as H_d. Every magnetized permanent magnet generates an internal field that opposes its own magnetization direction.
Think of it this way: when the magnetic domains inside the material align during magnetization, the resulting external field forces a counter-field to form inside the magnet. This internal opposition reduces the magnet's net output — but it does so unevenly across the volume.
The demagnetizing field is strongest at the geometric center and weakest at the edges and corners of the magnet. As a result:
• At the center, the opposing field cancels a significant portion of the magnetization, reducing measurable surface flux
• At the edges, the opposing field is minimal, so domain alignment translates more directly into external flux
• At sharp corners, flux density can spike further due to field concentration effects
This is why your gauss meter shows a higher reading near the edge of a Grade N42 block than at its center — even though the magnet is uniformly magnetized.

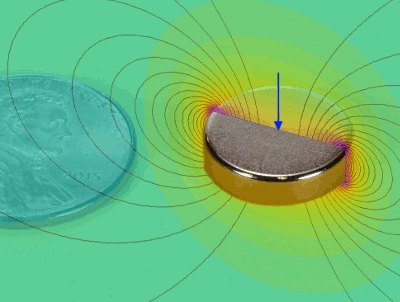

The demagnetizing field inside the magnet (blue arrow)
How Does Magnet Shape Affect Performance?
The shape of a permanent magnet directly controls how strong its demagnetizing field is. The key metric is the length-to-diameter ratio (L/D) — or, for non-cylindrical shapes, the length along the magnetization axis relative to the cross-section.
|
Magnet Geometry |
L/D Ratio |
Demagnetizing Field Strength |
Effective Surface Flux |
|
Thin disc or sheet |
Low (< 0.5) |
High |
Reduced |
|
Cube or square block |
Moderate (~1.0) |
Moderate |
Balanced |
|
Long rod or bar |
High (> 2.0) |
Low |
Maximized |
A long, slender magnet experiences far less internal self-demagnetization than a flat, thin one. This is why magnetic separator rods, sensor magnets, and certain motor magnets are designed with elongated profiles along the magnetization axis.
For precision applications — Hall-effect sensors, voice coil motors, magnetic encoders — the L/D ratio is often as critical as the material grade itself. Designers who optimize geometry can often downgrade material cost without sacrificing performance.
How Should You Measure Magnet Surface Flux Correctly?
If your QC team is measuring surface flux with a gauss meter, the measurement location must be standardized — or your data is meaningless.
Industry convention specifies the following:
• Measurement point: the geometric center of the pole face
• Probe orientation: Hall sensor perpendicular to the pole face
• Probe contact: flush against the magnet surface, no air gap
• Reference standard: IEC 60404-5 for magnetic property testing of hard magnetic materials
When evaluating supplier datasheets, always confirm where the surface flux value was measured. A vendor quoting "4,200 gauss surface flux" at the corner of a block is reporting a number that has no bearing on the magnet's center-point performance.
Two questions to ask every supplier:
1. Was surface flux measured at the geometric center of the pole face?
2. What probe and calibration standard was used?
These two questions filter out a significant portion of inconsistent supplier data — particularly from sources that lack ISO 9001 or IEC-aligned QC processes.
What Does This Mean for Magnet Selection in Engineering Design?
Understanding edge-vs-center flux distribution changes how you approach three common engineering decisions:
1. Holding force calculations. If your application relies on contact with the center of the pole face — for example, a flat-faced magnetic chuck — your usable flux is lower than the peak edge value suggests. Size accordingly.
2. Sensor positioning. For Hall-effect and magnetoresistive sensors, the position relative to the magnet's edge dramatically affects signal strength and linearity. Centered alignment gives the most stable, repeatable readings.
3. Geometry-first specification. Before upgrading from a Grade N42 to a Grade N52 NdFeB magnet to gain more force, evaluate whether changing the L/D ratio achieves the same goal at lower cost. A taller magnet of a cheaper grade often outperforms a flat magnet of a premium grade.
Frequently Asked Questions
Q: Which part of a magnet has the strongest magnetic force?
A: The edges and corners of a regularly shaped permanent magnet have the strongest surface flux density. The geometric center is the weakest point on the pole face. This pattern applies to NdFeB, SmCo, ferrite, and Alnico magnets alike.
Q: Why is the center of a magnet weaker than the edges?
A: The demagnetizing field — an internal opposing field generated by the magnet itself — is strongest at the geometric center and weakest at the edges. This internal opposition cancels part of the magnetization at the center, reducing measurable surface flux there while leaving edge flux nearly unaffected.
Q: Where should I measure surface flux on a permanent magnet?
A: Industry standard is the geometric center of the pole face, with the Hall probe oriented perpendicular to the surface and in flush contact. This is the reference point used in most manufacturer datasheets and IEC 60404-5 testing protocols. Edge measurements are not directly comparable to center-point specifications.
Q: Does magnet shape affect magnetic strength?
A: Yes. The length-to-diameter ratio along the magnetization axis controls the strength of the internal demagnetizing field. Long, slender magnets retain more of their magnetization than flat, thin ones of the same material grade and volume.
Q: Is a higher grade NdFeB magnet always better than a longer one?
A: Not necessarily. Increasing the L/D ratio reduces internal demagnetization and can deliver more usable flux than upgrading the material grade. For cost-sensitive designs, optimizing geometry often outperforms specifying a higher grade like N52 or N55.
Specify the Right Magnet for Your Application
Surface flux distribution, demagnetizing field behavior, and L/D ratio all affect whether a magnet performs as your design requires. If you are evaluating NdFeB, SmCo, or other permanent magnet options for a new project, request a technical consultation with our engineering team to review your specifications, geometry, and operating conditions before sourcing.
