Introduction
If you specify, source, or design with permanent magnets — NdFeB, SmCo, or ferrite — understanding why they attract iron isn't just academic. It directly informs material selection, gap geometry, and system reliability. Yet the mechanism is routinely oversimplified. This article explains the physics precisely, from electron spin to macroscopic force, so you can apply it with confidence.
What Actually Generates a Magnetic Field?
The source of all magnetism is the electron. Every electron possesses an intrinsic quantum property called spin, which generates a tiny magnetic dipole moment. Think of each electron as a microscopic current loop — it produces its own localized magnetic field.

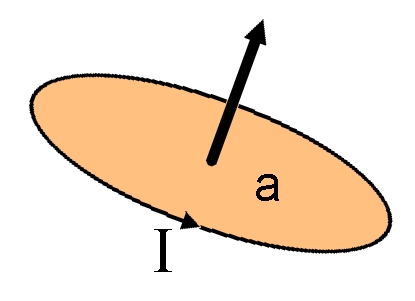

The magnetic moment of a particle
In most materials — copper, aluminum, plastic, wood — these dipole moments are randomly oriented. Their fields cancel each other out statistically. The net external magnetic field is effectively zero.

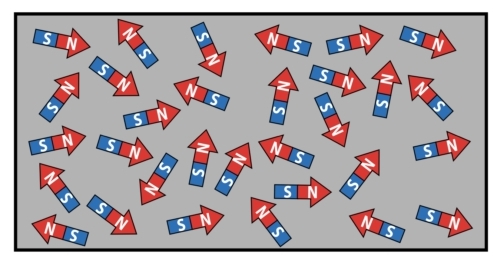

The arrangement of magnetic moments within non-magnetic materials
In ferromagnetic materials, the situation is fundamentally different. Exchange interactions between neighboring atoms force electron spins into parallel alignment within discrete regions called magnetic domains. Each domain behaves as a tiny, internally ordered magnet.

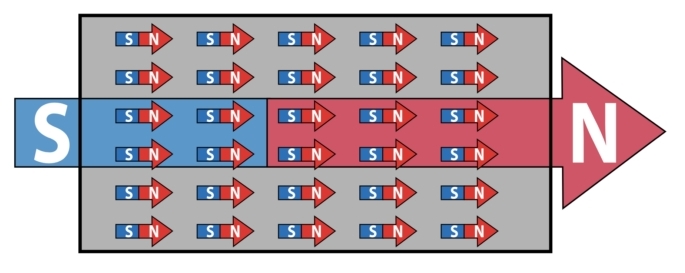

The alignment of magnetic moments within permanent magnet materials
How a Permanent Magnet Organizes Its Domains
In an unmagnetized ferromagnetic sample, domains are randomly oriented relative to each other. Their fields cancel at the macroscopic level — the material appears non-magnetic.
When the material is magnetized — by exposure to a strong external field during manufacturing — the domains align along a preferred axis. In high-performance materials like NdFeB magnet, the crystalline anisotropy energy is exceptionally high. This locks domain alignment in place after the external field is removed.

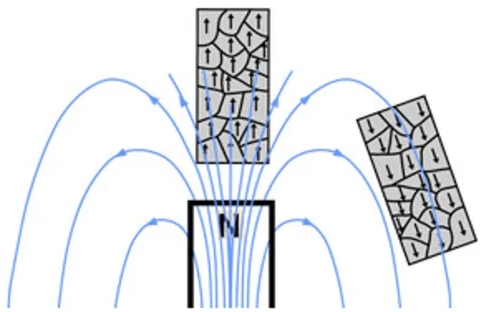

The process of magnetizing iron objects using magnetic field lines
The result is a permanent magnet: a material whose domain structure remains stable under normal operating conditions, producing a sustained external magnetic field with no ongoing energy input.
Key spec context: NdFeB grades (e.g., N35–N55) differ primarily in their maximum energy product (BH)max, which directly reflects how effectively domain alignment is maintained. Higher grades = higher remanence and coercivity.
Why Iron Responds — and Copper Doesn't
When a ferromagnetic material like iron enters a permanent magnet's external field, the field exerts torque on the iron's existing magnetic domains. Those domains rotate to align with the applied field — a process called magnetization or magnetic induction.
Once magnetized, the iron piece itself develops a north and south pole. Opposite poles attract. The iron is pulled toward the magnet.

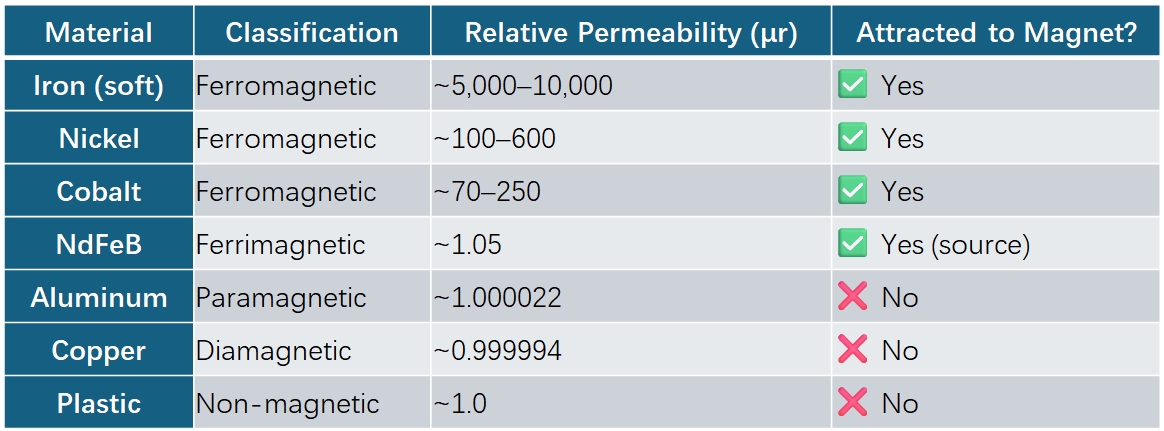

The critical distinction is magnetic permeability (μ):
Copper and aluminum have no unpaired electrons in configurations that support domain formation. Their electron spins remain disordered regardless of applied field strength. No magnetization occurs — no attractive force develops.
The Role of Ferromagnetic and Hard Magnetic Materials in Engineering
Understanding this mechanism clarifies why NdFeB and SmCo (samarium-cobalt) dominate high-performance applications:
• NdFeB offers the highest (BH)max of any commercial permanent magnet material — up to ~420 kJ/m³ for sintered grades. Its strong crystalline anisotropy resists demagnetization under load.
• SmCo provides superior thermal stability (operating range up to 350°C) and excellent corrosion resistance — preferred in aerospace and defense applications.
• Soft ferromagnetic materials (silicon steel, soft iron) are used where reversible magnetization is needed — transformer cores, motor stators — because their domains re-randomize easily when the field is removed.
Selecting between hard and soft magnetic materials is fundamentally a question of domain stability: how strongly does the crystal structure resist domain wall movement?
Three Key Parameters That Define Magnet Performance
When specifying permanent magnets, engineers rely on three figures from the B-H demagnetization curve:
1. Remanence (Br) — residual flux density after the magnetizing field is removed, measured in Tesla (T) or Gauss. Higher Br = stronger field.
2. Coercivity (Hc or HcJ) — resistance to demagnetization, measured in kA/m or Oersteds. Higher HcJ = more stable under opposing fields or elevated temperatures.
3. Maximum Energy Product (BH)max — figure of merit for the magnet's ability to store magnetic energy per unit volume, measured in kJ/m³ or MGOe.
These parameters are directly governed by domain physics: how aligned the domains are (Br), how strongly they resist realignment (Hc), and the product of both (BHmax).
Applications and Use Cases
Q: Why does a permanent magnet attract iron but not copper or aluminum?
A: Iron is ferromagnetic — its electron spin structure allows magnetic domains to form and align under an applied field. Copper and aluminum lack this domain structure, so they cannot be magnetized and experience no meaningful attractive force from a permanent magnet.
Q: What is the difference between a hard magnetic material and a soft magnetic material?
A: Hard magnetic materials (NdFeB, SmCo, ferrite) have high coercivity — their domain alignment resists reversal, making them suitable for permanent magnets. Soft magnetic materials (silicon steel, soft iron) have low coercivity — their domains realign easily, which is ideal for transformer cores and motor laminations.
Q: Why is NdFeB the most common permanent magnet material in modern engineering?
A: NdFeB achieves the highest maximum energy product (BH)max of any commercially available permanent magnet, enabling more compact, lighter designs for equivalent force output. It dominates applications in EV motors, wind turbines, industrial actuators, and MRI equipment.
Q: Can a permanent magnet lose its magnetism?
A: Yes. Elevated temperatures above the material's Curie temperature cause thermal agitation that randomizes domain alignment, permanently reducing or eliminating magnetism. Strong opposing magnetic fields and mechanical shock can also disrupt domain structure. Each material has a published maximum operating temperature — for NdFeB, this is typically 80°C–200°C depending on grade and coercivity class.
Q: What is magnetic permeability and why does it matter for magnet selection?
A: Magnetic permeability (μ) quantifies how readily a material supports magnetic flux. Ferromagnetic materials have very high μr, meaning they concentrate and conduct magnetic flux efficiently — critical for designing magnetic circuits with minimal reluctance. Non-magnetic materials have μr ≈ 1.0, contributing no flux concentration.
Ready to Specify the Right Permanent Magnet for Your Application?
Material selection — NdFeB grade, SmCo alloy, coating specification, or operating temperature class — has a measurable impact on system performance and service life. Talk to an applications engineer to review your load line, thermal environment, and dimensional constraints before finalizing your design.
